Modulární obojživelné vozidlo pro každou misi
AMPHIBIOUS VEHICLE - PLATFORM OF SPECIAL VEHICLESFOR CIVIL RESCUE FORCES
This project has been financed with the state support of the Technology Agency of the Czech Republic and the Ministry of Industry and Trade of the Czech Republic within the TREND Programme.
This project has been financed with the state support of the Technology Agency of the Czech Republic and the Ministry of Industry and Trade of the Czech Republic within the TREND Programme.

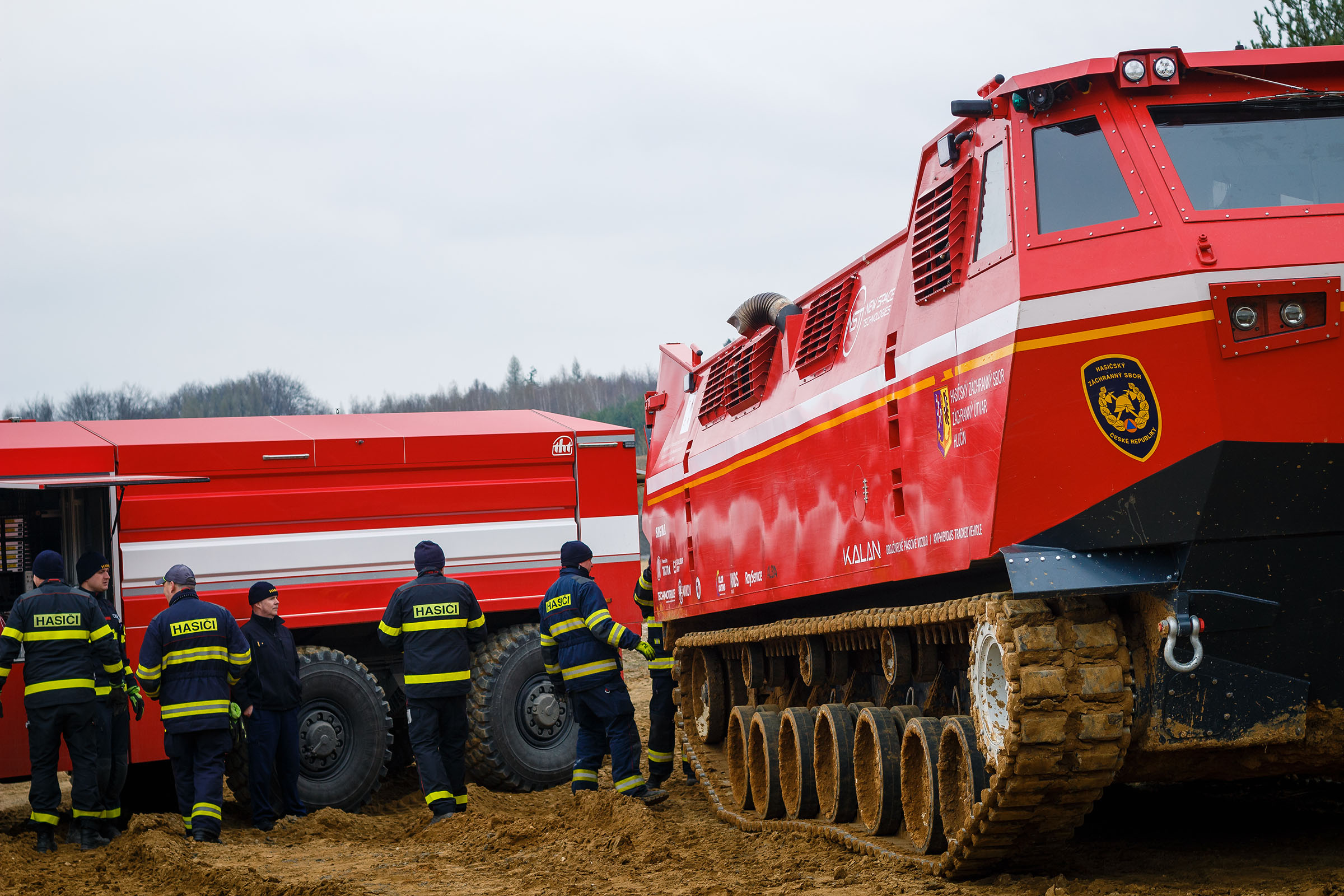

KALAN
je speciální obojživelná platforma pro záchranné a zásahové složky s širokým rozsahem použití:
Záchrana a evakuace z postižených oblastí
Přeprava materiálu nebo záchranných týmů s výstrojí
Přeprava vybavení, pozemní techniky, kontejnerů
Speciální zásahy a operace
Platforma pro instalaci řady speciálních nástaveb
Parameters
SPEED
Max. speed up to 60 km/h60 km/h
Land: 35 km/h35 km/h
Water: 6,5 kn (12 km/h) 6,5 kn (12 km/h)
Land: 35 km/h35 km/h
Water: 6,5 kn (12 km/h) 6,5 kn (12 km/h)
ENGINE
Tatra V12
Power: 440 kW440 kW
Fuel: DieselDiesel
Power: 440 kW440 kW
Fuel: DieselDiesel
DIMENSIONS
Length: 10,2 m10,2 m
Width: 3,3 m3,3 m
Height: 3,07 m 3,07 m
Width: 3,3 m3,3 m
Height: 3,07 m 3,07 m
WEIGHT
Empty: 20 000 kg20 000 kg
Maximal: 29 000 kg29 000 kg
Maximal: 29 000 kg29 000 kg
Transporter
The transport version of the KALAN is capable of transporting a wide variety of heavy and large cargo. It can transport palletized and unpalletized cargo, ground equipment, containers, including special rescue teams containers.
Transported can be equipped with:
Hook loader (carrier) of containers
Winch with rollers
“Loyd“ system of containers attachment
Hydraulic arm
Anchor elements for cargo
Rescue
Evacuation
The transporter can transport a rescue team and medical supplies. The hull can be fitted with medical beds or medical stretchers and the whole hull can be roofed.
Storage for medical supplies
Stretchers (assembled/stacked)
Preparation for beds
Rescue equipment (vests, ropes, boat)
Roofing of the hull
Emergency vehicle
Fire truck
KALAN can be fully equipped for firefighting. The vehicle can carry a water tank and fire monitors or other accessories.
Fire monitors (roof and front)
Water and foam tank (up to 8 000 litres)
